66.9112-21 | Stäubli Electrical Connectors

Test probe, socket 4 mm, rigid, 1 kV, black, 66.9112-21

Order No.: 35F1606
EAN: 4099891479886
MPN:
66.9112-21
PP-115/4 SCHWARZ
Series: PP-115/4
Stäubli Electrical Connectors

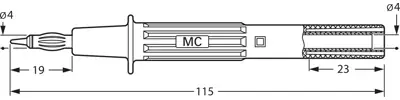

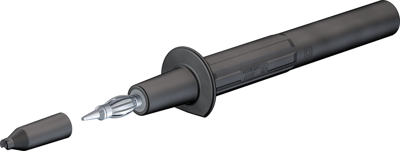

66.9112-21 Stäubli Electrical Connectors Test Leads and Test Probes Image 1

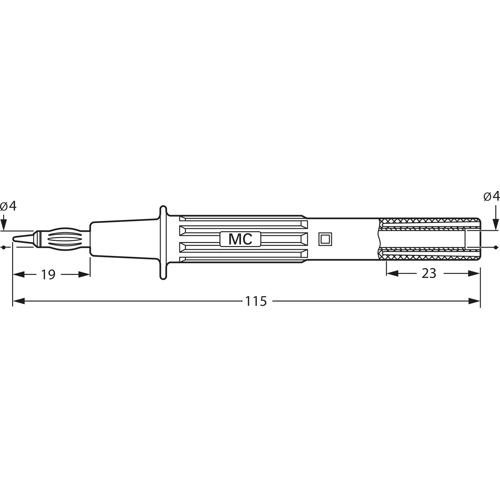

66.9112-21 Stäubli Electrical Connectors Test Leads and Test Probes Image 2
Image may differ
Print
Key Specification:
Connection socket 4 mm, rigid
Rated voltage 1 kV
Colour black
Material Insulation PA
Contact material CuZn, nickel-plated

Ordering Information:

Supplied with a protective cap.
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.3316 € *
Available: 35 pcs.
Leadtime: 1 Week **
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
25 pcs.
3.8199 €
100 pcs.
3.3558 €
500 pcs.
3.2130 €
1000 pcs.
3.0107 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Test probe, 66.9112-21, Stäubli Electrical Connectors

Ø 4 mm, with spring-loaded MULTILAM. Handle guard flattened on one side to prevent rolling. Also allows for close sideby-side plugging of probes. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
Connection socket 4 mm, rigid
Colour black
Material Insulation PA
Contact material CuZn, nickel-plated
Rated voltage 1 kV
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
