66.9112-22 | Stäubli Electrical Connectors

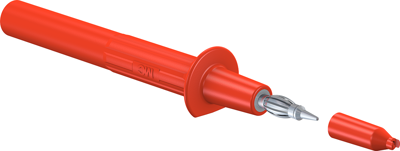

Test probe, socket 4 mm, rigid, 1 kV, red, 66.9112-22
Unit Price (€ / pc.)
4.3316 € *
Available: 14 pcs.
Leadtime: 1 Week **
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
25 pcs.
3.8199 €
100 pcs.
3.3558 €
500 pcs.
3.2130 €
1000 pcs.
3.0107 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test probe, 66.9112-22, Stäubli Electrical Connectors

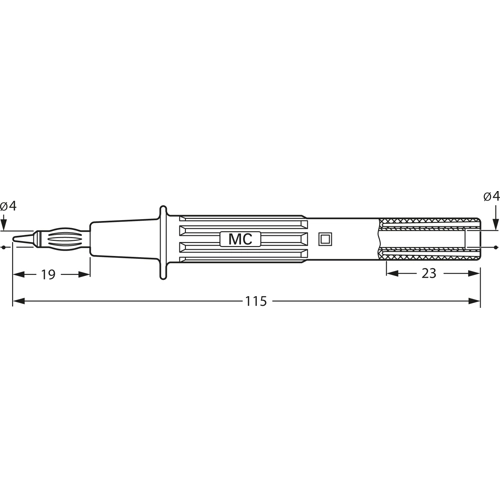

Ø 4 mm, with spring-loaded MULTILAM. Handle guard flattened on one side to prevent rolling. Also allows for close sideby-side plugging of probes. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
| Anschluss | Buchse 4 mm, starr | |
| Farbe | rot | |
| Isolationsmaterial | PVC | |
| Kontaktmaterial | CuZn, vernickelt | |
| Nennspannung | 1 kV |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
