15.2017-100 | Stäubli Electrical Connectors

Name: POAG connection cable with (POAG socket, spring-loaded, angled) to (3 x POAG panel socket, straight), 1 m, green/yellow, PVC, 6.0 mm², 15.2017-100
Brand: Stäubli Electrical Connectors
SKU: 86F1520
Price: 95.13 EUR
Availability: OutOfStock

POAG connection cable with (POAG socket, spring-loaded, angled) to (3 x POAG panel socket, straight), 1 m, green/yellow, PVC, 6.0 mm², 15.2017-100

Order No.: 86F1520

EAN: 4099891069629

MPN:

15.2017-100

MC-POAG-K6FS/VMB3/KBT6DIN/100

Series: MC-POAG-K6F

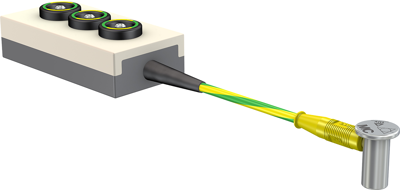

15.2017-100 Stäubli Electrical Connectors Test Leads Image 1

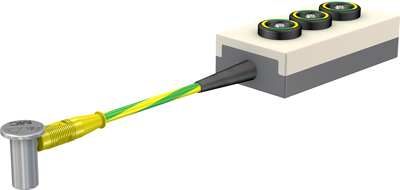

15.2017-100 Stäubli Electrical Connectors Test Leads Image 2

15.2017-100 Stäubli Electrical Connectors Test Leads Image 3

Image may differ

Key Specification:

Connection (1) POAG socket, spring-loaded, angled

Connection (2) 3 x POAG panel socket, straight

Cable length 1 m

Cable cross-section 6.0 mm²

Colour green/yellow

Download Datasheet Technical specifications

Unit Price (€ / pc.)

95.1286 € *

Available: 0 pcs.

Leadtime: 16 Weeks **

Add to Cart

Total Price:

95.13 € *

Price list

Quantity

Price per unit*

1 pcs.

95.1286 €

5 pcs.

89.1905 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Connection lead, 15.2017-100, Stäubli Electrical Connectors

Highly flexible green-yellow extension lead with triple socket for potential equalization. Fitted at one end with right-angled female plug with spring-loaded MULTILAM (type POAG-KBT6DIN), other end 3 terminals POAG-ID6. Contact parts in nickel-plated brass, MULTILAM of socket in gold-plated hard copper alloy.

Technical specifications

	Connection (1)	POAG socket, spring-loaded, angled
	Connection (2)	3 x POAG panel socket, straight
	Touch safe	No
	Colour	green/yellow
	Cable length	1 m
	contact surface	nickel-plated
	Cable cross-section	6.0 mm²
	Material	PVC
	Stackable	No
