28.0012-01521 | Stäubli Electrical Connectors

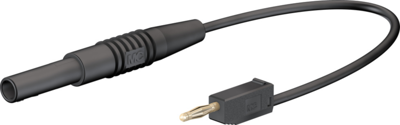

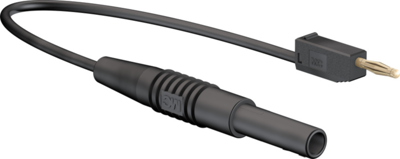

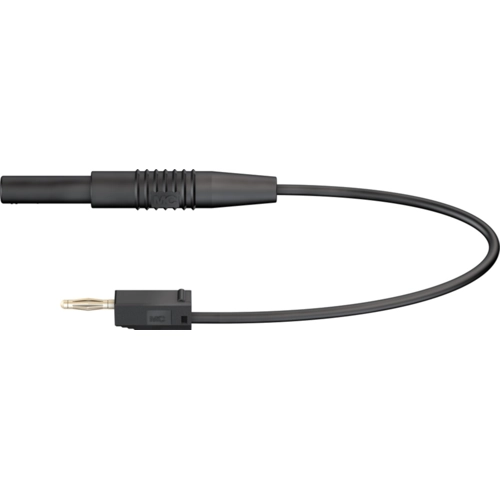

Measuring lead with (2 mm plug, spring-loaded, straight) to (4 mm socket, rigid, straight), 150 mm, black, PVC, 0.5 mm², 28.0012-01521
Order No.: 86F8056
EAN: 4099891079253
MPN:
28.0012-01521
AK205/405-BK 0,15M SCHWARZ
Series: AK205/405-BK
Vom Hersteller nicht mehr lieferbar
Unit Price (€ / pc.)
7.0091 € *
Available: 27 pcs.
Leadtime: 4 Weeks **
Total Price:
7.01 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0091 €
10 pcs.
6.1523 €
100 pcs.
5.4145 €
500 pcs.
5.2003 €
1000 pcs.
4.8671 €
*incl. VAT plus shipping costs
**Subject to prior sale
Adapter lead, 28.0012-01521, Stäubli Electrical Connectors
Highly flexible. One end with Ø 2 mm stackable MULTILAM plug, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
| Anschluss (1) | 2 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Buchse, starr, gerade | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Farbe | schwarz | |
| Kabellänge | 150 mm | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PVC | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
