28.0039-04521 | Stäubli Electrical Connectors

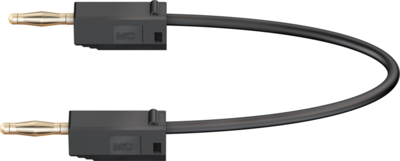

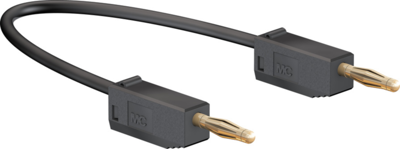

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 450 mm, black, PVC, 0.5 mm², CAT O, 28.0039-04521
Order No.: 86F8278
EAN: 842640105697
MPN:
28.0039-04521
LK205 0,45M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
4.1531 € *
Available: 14 pcs.
Leadtime: 4 Weeks **
Total Price:
4.15 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1531 €
10 pcs.
3.8199 €
50 pcs.
3.6057 €
100 pcs.
3.3796 €
500 pcs.
3.1535 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, 28.0039-04521, Stäubli Electrical Connectors
Highly flexible with stackable Ø 2 mm MULTILAM plugs on both ends.
Technical specifications
| Connection (1) | 2 mm Stecker, gefedert, gerade | |
| Connection (2) | 2 mm Stecker, gefedert, gerade | |
| Cable length | 450 mm | |
| Cable cross-section | 0,5 mm² | |
| Colour | schwarz | |
| Material | PVC | |
| contact surface | vergoldet | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Beutel mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
