28.0060-05027 | Stäubli Electrical Connectors

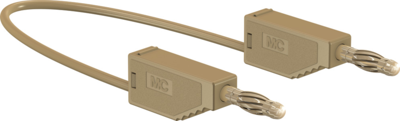

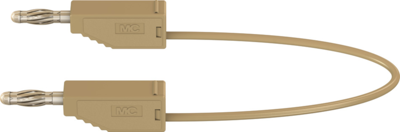

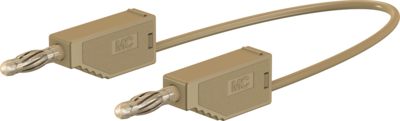

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 500 mm, brown, PVC, 1.0 mm², CAT O, 28.0060-05027
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 500 mm, brown, PVC, 1.0 mm², 64.1031-05027
Order No.: 86F2077
Manufacturer: Stäubli Electrical Connectors
per pc. 5.5930 € *
*incl. VAT plus shipping costs
Measuring lead, 28.0060-05027, Stäubli Electrical Connectors
Highly flexible test lead with insulation in PVC with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, gerade | |
| Cable length | 500 mm | |
| Cable cross-section | 1,0 mm² | |
| Colour | braun | |
| Material | PVC | |
| contact surface | vergoldet | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A | |
| Touch safe | No | |
| Stackable | Yes |
Download
Logistics
| Customs tariff number | 85444290 |
| Original Packaging | Beutel mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
