28.0061-07525 | Stäubli Electrical Connectors

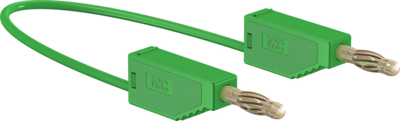

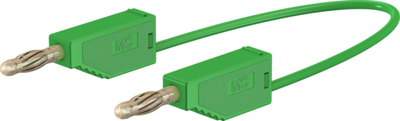

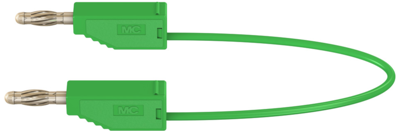

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 750 mm, green, silicone, 1.0 mm², CAT O, 28.0061-07525
Order No.: 86F8429
EAN: 4099891081249
MPN:
28.0061-07525
LK410/SIL 0,75M GRÜN
Series: Test & Measurement
Vom Hersteller nicht mehr lieferbar - Last time buy Hersteller: 31.12.2022
Unit Price (€ / pc.)
5.9262 € *
Available: 3 pcs.
Measuring lead, 280061-07525, Stäubli Electrical Connectors
Highly flexible test leads with insulation in silicone with stackable Ø 4 mm Multilam plugs on both ends.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, gerade | |
| Cable length | 750 mm | |
| Cable cross-section | 1,0 mm² | |
| Colour | grün | |
| Material | Silikon | |
| contact surface | vergoldet | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A | |
| Touch safe | No | |
| Stackable | Yes |
Download
Logistics
| Customs tariff number | 85444290 |
| Original Packaging | Beutel mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
