28.0074-02524 | Stäubli Electrical Connectors

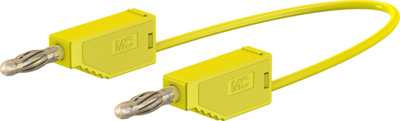

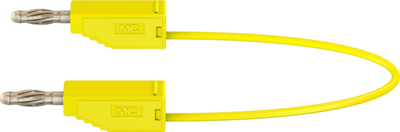

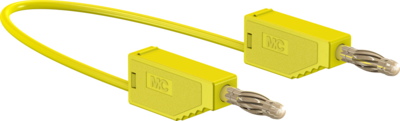

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 250 mm, yellow, silicone, 2.5 mm², 28.0074-02524
No longer available from manufacturer, LTB: 12.31.2022
Unit Price (€ / pc.)
5.1527 € *
Available: 5 pcs.
Measuring lead, 28.0074-02524, Stäubli Electrical Connectors
Highly flexible, with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | No | |
| Colour | yellow | |
| Cable length | 250 mm | |
| contact surface | gold-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | silicone | |
| Stackable | Yes |
Download
Logistics
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
