28.0124-20027 | Stäubli Electrical Connectors
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, brown, PVC, 2.5 mm², CAT III, 28.0124-20027
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, brown, PVC, 2.5 mm², CAT II, CAT III, 66.2015-20027
Order No.: 86F2892
Manufacturer: Stäubli Electrical Connectors
per pc. 10.3292 € *
*incl. VAT plus shipping costs

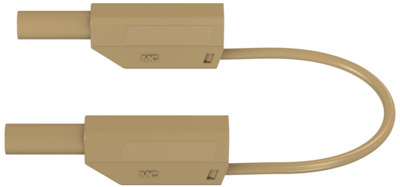

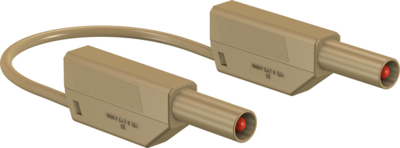

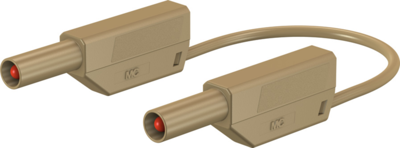

Measuring lead, 28.0124-20027, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, gerade | |
| Cable length | 2 m | |
| Cable cross-section | 2,5 mm² | |
| Colour | braun | |
| Material | PVC | |
| contact surface | vergoldet | |
| Rated category | CAT III | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85444290 |
| Original Packaging | Beutel mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
