28.0126-05027 | Stäubli Electrical Connectors

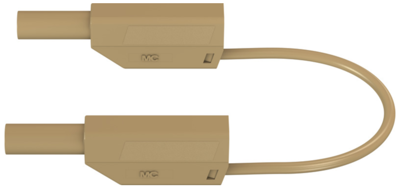

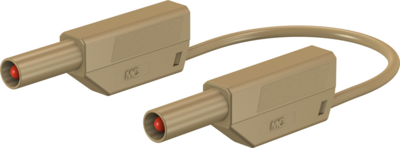

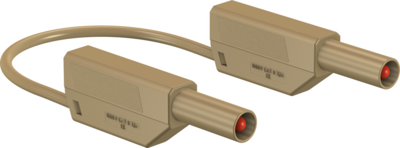

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 500 mm, brown, silicone, 1.0 mm², CAT III, 28.0126-05027
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 500 mm, brown, silicone, 1.0 mm², CAT II, CAT III, 66.2013-05027
Order No.: 86F2716
Manufacturer: Stäubli Electrical Connectors
per pc. 8.6275 € *
*incl. VAT plus shipping costs
Measuring lead, 28.0126-05027, Stäubli Electrical Connectors
Highly flexible, with insulation in silicone with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 600 V | |
| Rated current | 19 A | |
| Touch safe | Yes | |
| Colour | brown | |
| Cable length | 500 mm | |
| contact surface | gold-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | silicone | |
| Rated category | CAT III | |
| Stackable | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
