28.0127-10026 | Stäubli Electrical Connectors

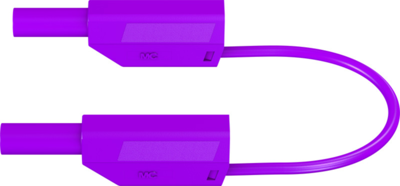

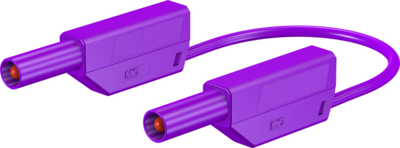

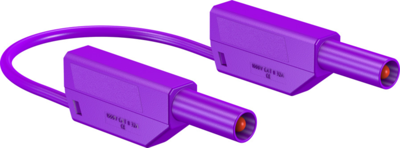

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, purple, PVC, 0.75 mm², CAT III, 28.0127-10026
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, purple, PVC, 1.0 mm², CAT II, CAT III, 66.2010-10026
Order No.: 86F2539
Manufacturer: Stäubli Electrical Connectors
per pc. 5.7953 € *
*incl. VAT plus shipping costs
Measuring lead, 28.0127-10026, Stäubli Electrical Connectors
Highly flexible, with PVC insulation, both ends with stackable Ø 4 mm laminated plug with rigid insulating sleeve.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 600 V | |
| Rated current | 15 A | |
| Touch safe | Yes | |
| Colour | purple | |
| Cable length | 1 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 0.75 mm² | |
| Material | PVC | |
| Rated category | CAT III | |
| Stackable | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
