49.0126-05022 | Stäubli Electrical Connectors

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 500 mm, red, PVC, 1.0 mm², CAT III, 49.0126-05022

Order No.: 86F4675
EAN: 4099891073534
MPN:
49.0126-05022
SLK410-E/N 500MM ROT
Series: SLK410
Stäubli Electrical Connectors

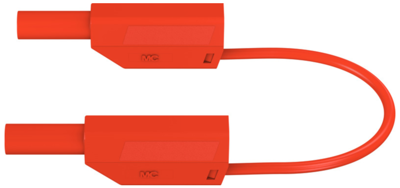

49.0126-05022 Stäubli Electrical Connectors Test Leads Image 1

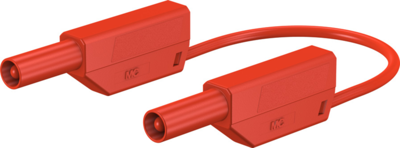

49.0126-05022 Stäubli Electrical Connectors Test Leads Image 2
49.0126-05022 Stäubli Electrical Connectors Test Leads Image 3
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
4.1293 € *
Available: 17 pcs.
Leadtime: On Request **
Total Price:
4.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.1293 €

Measuring lead, 49.0126-05022, Stäubli Electrical Connectors

Highly flexible test leads with insulation in PVC with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve on both ends.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 600 V
Rated current 19 A
Touch safe Yes
Colour red
Cable length 500 mm
contact surface nickel-plated
Cable cross-section 1.0 mm²
Material PVC
Rated category CAT III
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85444290
Original Packaging Bag with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
