55.3227-10020 | Stäubli Electrical Connectors

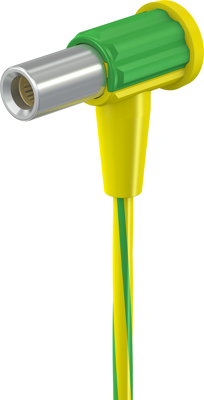

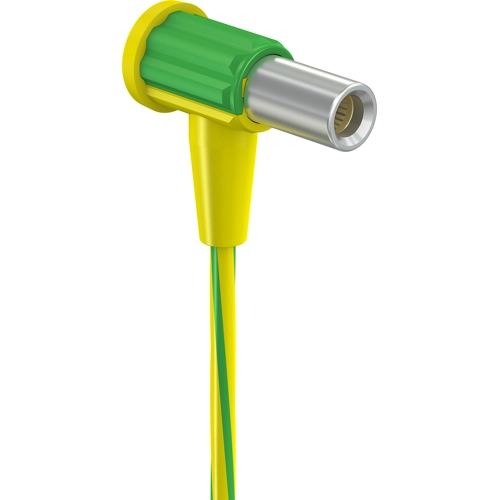

POAG connection cable with (POAG socket, spring-loaded, angled) to (POAG socket, spring-loaded, angled), 1 m, green/yellow, PVC, 6.0 mm², 55.3227-10020
Order No.: 86F1512
EAN: 4099891069544
MPN:
55.3227-10020
POAG-HK6/KBT6-EC/KBT6-EC GRÜN/GELB 1,0M
Series: POAG-HK
No longer available from manufacturer
Unit Price (€ / pc.)
34.4029 € *
Available: 2 pcs.
Leadtime: On Request **
Connection lead, 55.3227-10020, Stäubli Electrical Connectors
Highly flexible connecting leads with green-yellow insulation for potential equalization. On both ends with assembled right-angled, spring-loaded sockets. Sockets made of nickel-plated with MULTILAM made of gold-plated, hard-drawn copper alloy.
Technical specifications
| Connection (1) | POAG socket, spring-loaded, angled | |
| Connection (2) | POAG socket, spring-loaded, angled | |
| Touch safe | No | |
| Colour | green/yellow | |
| Cable length | 1 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 6.0 mm² | |
| Material | PVC | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
