64.1060-00721 | Stäubli Electrical Connectors

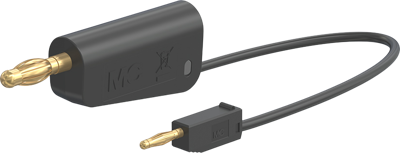

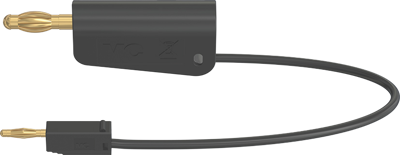

Measuring lead with (2 mm lamella plug, straight) to (4 mm lamella plug, straight), 0.07 m, black, PVC, 0.5 mm², 64.1060-00721
Order No.: 86F9316
EAN: 4099891644482
MPN:
64.1060-00721
LK-4A2A-F05 0,07M SCHWARZ
Series: LK-4A2A-F05
Unit Price (€ / pc.)
5.2241 € *
Available: 7 pcs.
Leadtime: 3 Weeks **
Total Price:
5.22 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2241 €
10 pcs.
4.8314 €
50 pcs.
4.4506 €
100 pcs.
4.1650 €
500 pcs.
3.9151 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring line, 64.1060-00721, Stäubli Electrical Connectors
Highly flexible. One end with Ø 2 mm stackable MULTILAM plug, the other end with Ø 4 mm stackable MULTILAM plug.
Technical specifications
| Anschluss (1) | 2 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, gerade | |
| Bemessungsspannung | 30 V/60 V | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Farbe | schwarz | |
| Kabellänge | 0.07 m | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PVC | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
