64.1060-00725 | Stäubli Electrical Connectors

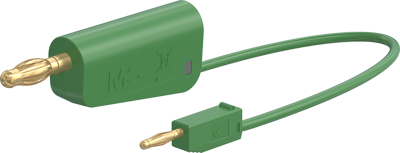

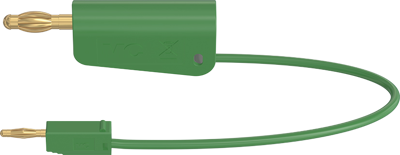

Measuring lead with (2 mm lamella plug, straight) to (4 mm lamella plug, straight), 0.07 m, green, PVC, 0.5 mm², 64.1060-00725
Unit Price (€ / pc.)
4.9504 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.95 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9504 €
10 pcs.
4.5815 €
50 pcs.
4.2126 €
100 pcs.
3.9508 €
500 pcs.
3.7128 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring line, 64.1060-00725, Stäubli Electrical Connectors
Highly flexible. One end with Ø 2 mm stackable MULTILAM plug, the other end with Ø 4 mm stackable MULTILAM plug.
Technical specifications
| Connection (1) | 2 mm lamella plug, straight | |
| Connection (2) | 4 mm lamella plug, straight | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 10 A | |
| Touch safe | No | |
| Colour | green | |
| Cable length | 0.07 m | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
