64.1060-01522 | Stäubli Electrical Connectors
Measuring lead with (2 mm lamella plug, straight) to (4 mm lamella plug, straight), 0.15 m, red, PVC, 0.5 mm², 64.1060-01522
Unit Price (€ / pc.)
5.2598 € *
Available: 18 pcs.
Leadtime: On Request **
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2598 €
10 pcs.
4.8790 €
50 pcs.
4.4863 €
100 pcs.
4.2126 €
500 pcs.
3.9508 €
*incl. VAT plus shipping costs
**Subject to prior sale

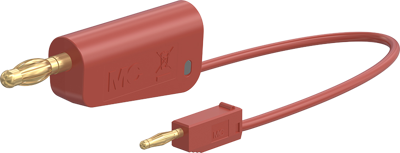

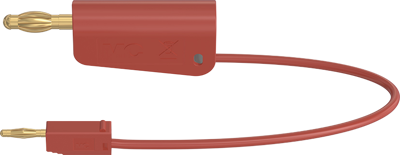

Measuring line, 64.1060-01522, Stäubli Electrical Connectors
Highly flexible. One end with Ø 2 mm stackable MULTILAM plug, the other end with Ø 4 mm stackable MULTILAM plug.
Technical specifications
| Anschluss (1) | 2 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, gerade | |
| Bemessungsspannung | 30 V/60 V | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Farbe | rot | |
| Kabellänge | 0.15 m | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PVC | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
