65.9179-06025 | Stäubli Electrical Connectors
Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 0.6 m, green, PVC, 0.5 mm², CAT II, 65.9179-06025
Unit Price (€ / pc.)
6.9734 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.97 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9734 €
25 pcs.
6.4022 €
50 pcs.
6.0333 €
100 pcs.
5.6644 €
500 pcs.
5.2717 €
*incl. VAT plus shipping costs
**Subject to prior sale

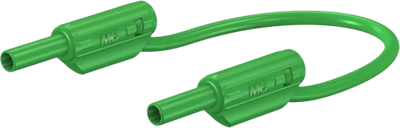

Test lead, 65.9179-06025, Stäubli Electrical Connectors
The 65.9179-06025 is a highly flexible test lead, with insulation in PVC, assembled stackable Ø 2 mm MULTILAM plugs and with rigid insulating sleeve on both ends.
Technical specifications
| Connection (1) | 2 mm plug, spring-loaded, straight | |
| Connection (2) | 2 mm plug, spring-loaded, straight | |
| Rated Voltage | 600 V | |
| Rated current | 10 A | |
| Touch safe | Yes | |
| Colour | green | |
| Cable length | 0.6 m | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Rated category | CAT II | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
