66.1042-15021 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, black, PVC, 2.5 mm², CAT IV, 66.1042-15021
Order No.: 86F9857
EAN: 4099891968977
MPN:
66.1042-15021
SAK-4N-F25 1,5 M SCHWARZ
Series: SAK-4N-F25
Unit Price (€ / pc.)
6.9496 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.95 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9496 €
25 pcs.
6.5450 €
50 pcs.
6.1523 €
100 pcs.
5.7596 €
250 pcs.
5.3550 €
*incl. VAT plus shipping costs
**Subject to prior sale

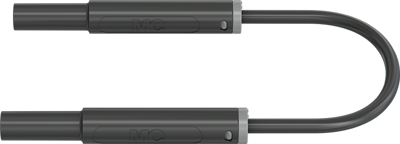

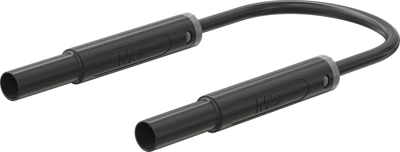

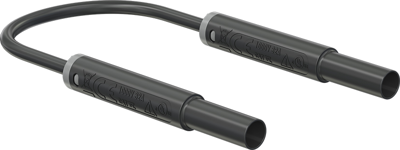

Safety measuring cable, 66.1042-15021, Stäubli Electrical Connectors
Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
Technical specifications
| Anschluss (1) | 4 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 32 A | |
| Farbe | schwarz | |
| Kabellänge | 1.5 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PVC | |
| Messkategorie | CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
