66.1044-10024 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm socket, straight), 1 m, yellow, PVC, 1.0 mm², CAT IV, 66.1044-10024
Unit Price (€ / pc.)
4.4863 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4863 €
25 pcs.
4.2364 €
50 pcs.
3.9746 €
100 pcs.
3.7247 €
250 pcs.
3.4629 €
*incl. VAT plus shipping costs
**Subject to prior sale

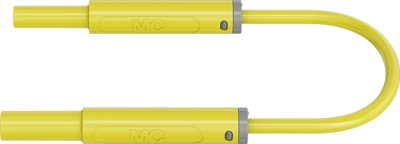

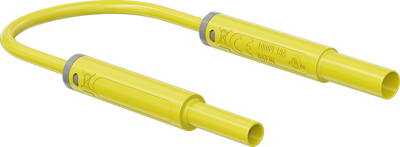

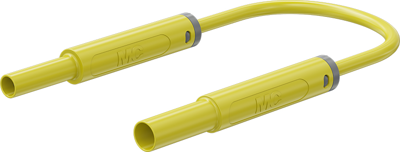

Safety extension cable, 66.1044-10024, Stäubli Electrical Connectors
Highly flexible. One end with Ø 4 mm MULTILAM plug with rigid insulating sleeve, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
| Anschluss (1) | 4 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Buchse, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 19 A | |
| Farbe | gelb | |
| Kabellänge | 1 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
