66.1045-10029 | Stäubli Electrical Connectors

Safety measuring lead with (4 mm lamella plug, straight) to (4 mm socket, straight), 1 m, white, silicone, 1.0 mm², CAT IV, 66.1045-10029

Order No.: 86F9937
EAN: 4099891969776
MPN:
66.1045-10029
SAF-4N-S10 1M WEISS
Series: SAF-4N-S10
Stäubli Electrical Connectors

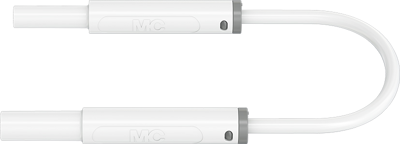

66.1045-10029 Stäubli Electrical Connectors Test Leads Image 1

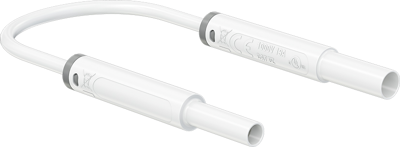

66.1045-10029 Stäubli Electrical Connectors Test Leads Image 2

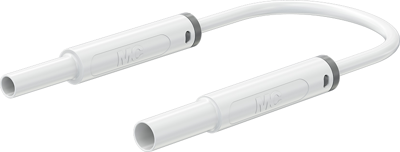

66.1045-10029 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Print
Key Specification:
Connection (1) 4 mm Lamellenstecker, gerade
Connection (2) 4 mm Buchse, gerade
Cable length 1 m
Cable cross-section 1,0 mm²
Colour weiß
Show 18 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
5.3788 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.38 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3788 €
25 pcs.
5.0694 €
50 pcs.
4.7600 €
100 pcs.
4.4506 €
250 pcs.
4.1531 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Safety extension cable, 66.1045-10029, Stäubli Electrical Connectors

Highly flexible. One end with Ø 4 mm MULTILAM plug with rigid insulating sleeve, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
Connection (1) 4 mm Lamellenstecker, gerade
Connection (2) 4 mm Buchse, gerade
Rated Voltage 1000 V
Rated current 19 A
Colour weiß
Cable length 1 m
contact surface vernickelt
Cable cross-section 1,0 mm²
Material Silikon
Rated category CAT IV
Stackable No
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
