66.1046-20021 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, black, PVC, 1.0 mm², CAT IV, 66.1046-20021
Order No.: 86F9960
EAN: 4099891970000
MPN:
66.1046-20021
SAK-4N-F10-ILF 2 M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
12.3879 € *
Available: 0 pcs.
Next delivery: 20 pcs. on 2025-05-26
Leadtime: 4 Weeks **
Total Price:
12.39 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3879 €
10 pcs.
11.6620 €
50 pcs.
10.9361 €
100 pcs.
10.2102 €
250 pcs.
9.4724 €
*incl. VAT plus shipping costs
**Subject to prior sale

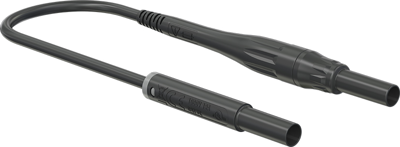

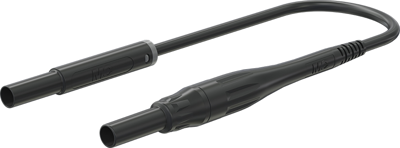

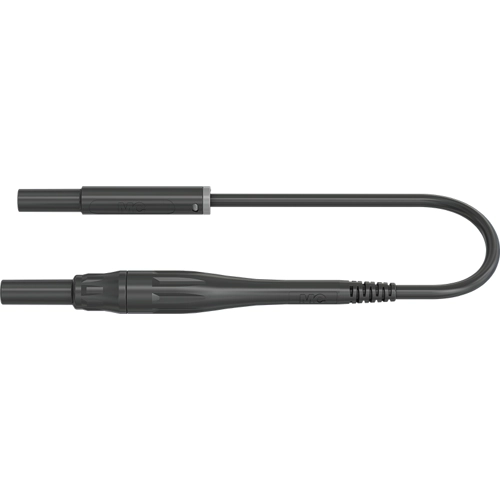

Measuring cable, 66.1046-20021, Stäubli Electrical Connectors
The test lead with integrated high breaking capacity fuses is designed for 1000 V, CAT IV in accordance with IEC/ EN 61010-031 and allow for the use of Ø 4 mm standard safety probes and test clips for fuse-protected measurements.To change the fuse, the two-part fused connector can be easily unscrewed. Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3 x 32 mm. The fuse is not supplied.
Technical specifications
| Connection (1) | 4 mm Lamellenstecker, gerade | |
| Connection (2) | 4 mm Lamellenstecker, gerade | |
| Cable length | 2 m | |
| Cable cross-section | 1,0 mm² | |
| Colour | schwarz | |
| Material | PVC | |
| contact surface | vernickelt | |
| Rated category | CAT IV | |
| Rated Voltage | 1000 V | |
| Rated current | 8 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
