66.1047-20023 | Stäubli Electrical Connectors

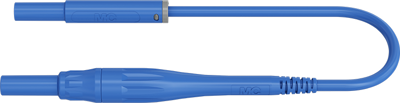

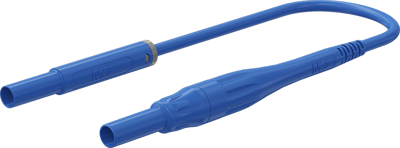

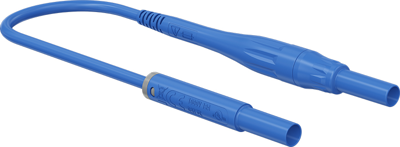

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, blue, silicone, 1.0 mm², CAT IV, 66.1047-20023
Order No.: 86F9986
EAN: 4099891970260
MPN:
66.1047-20023
SAK-4N-S10-ILF 2 M BLAU
Series: SAK-4N-S10-ILF
Unit Price (€ / pc.)
14.8512 € *
Available: 7 pcs.
Leadtime: 4 Weeks **
Total Price:
14.85 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8512 €
10 pcs.
13.9706 €
50 pcs.
13.1019 €
100 pcs.
12.2213 €
250 pcs.
11.3526 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring cable, 66.1047-20023, Stäubli Electrical Connectors
The test lead with integrated high breaking capacity fuses is designed for 1000 V, CAT IV in accordance with IEC/ EN 61010-031 and allow for the use of Ø 4 mm standard safety probes and test clips for fuse-protected measurements.To change the fuse, the two-part fused connector can be easily unscrewed. Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3 x 32 mm. The fuse is not supplied.
Technical specifications
| Anschluss (1) | 4 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 8 A | |
| Berührungssicher | Yes | |
| Farbe | blau | |
| Kabellänge | 2 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | Silikon | |
| Messkategorie | CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
