66.1048-10021 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, black, PVC, 1.0 mm², CAT II, 66.1048-10021
Unit Price (€ / pc.)
6.8306 € *
Available: 25 pcs.
Leadtime: 4 Weeks **
Total Price:
6.83 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8306 €
25 pcs.
6.4498 €
50 pcs.
6.0571 €
100 pcs.
5.6644 €
250 pcs.
5.2717 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, 66.1048-10021, Stäubli Electrical Connectors

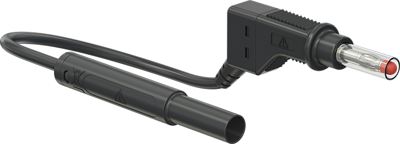

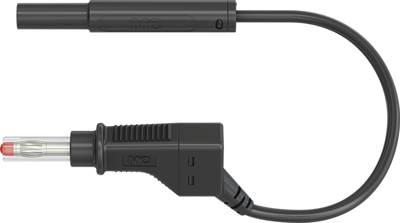

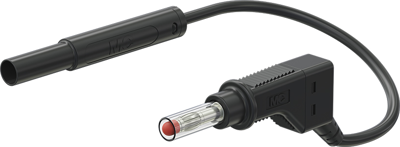

Highly flexible. One end with stackable Ø 4 mm MULTILAM plug with protective collar and retractable sleeve to prevent accidental touching especially suitable for connecting to electrical devices not (yet) equipped with safety sockets. The other end with inline Ø 4 mm MULTILAM plug with rigid insulating sleeve, e.g for connecting probes or test clips.
Technical specifications
| Anschluss (1) | 4 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, gerade | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 19 A | |
| Berührungssicher | Yes | |
| Farbe | schwarz | |
| Kabellänge | 1 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT II | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
