66.1049-10023 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, angled), 1 m, blue, PVC, 1.0 mm², CAT III, CAT IV, 66.1049-10023
Unit Price (€ / pc.)
5.7834 € *
Available: 25 pcs.
Leadtime: 4 Weeks **
Total Price:
5.78 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7834 €
25 pcs.
5.4502 €
50 pcs.
5.1289 €
100 pcs.
4.7957 €
250 pcs.
4.4625 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety measuring cable, 66.1049-10023, Stäubli Electrical Connectors

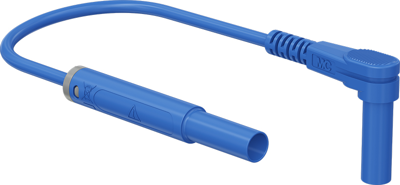

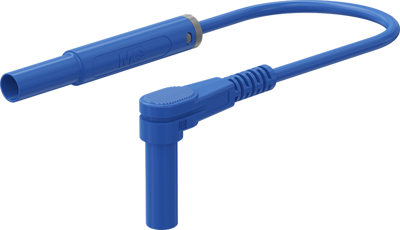

Highly flexible. One end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. The other end with right-angled Ø 4 mm MULTILAM plug with rigid insulating sleeve.
Technical specifications
| Anschluss (1) | 4 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, abgewinkelt | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 19 A | |
| Berührungssicher | Yes | |
| Farbe | blau | |
| Kabellänge | 1 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT III, CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
