66.1049-20021 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, angled), 2 m, black, PVC, 1.0 mm², CAT III, CAT IV, 66.1049-20021
Order No.: 86F0759
EAN: 4099891970710
MPN:
66.1049-20021
SARK-4N-F10 2 M SCHWARZ
Series: SARK-4N-F10
Unit Price (€ / pc.)
6.5331 € *
Available: 23 pcs.
Leadtime: 4 Weeks **
Total Price:
6.53 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5331 €
25 pcs.
6.1642 €
50 pcs.
5.7953 €
100 pcs.
5.4145 €
250 pcs.
5.0456 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety measuring cable, 66.1049-20021, Stäubli Electrical Connectors

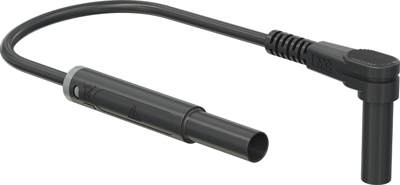

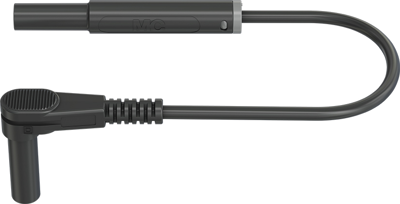

Highly flexible. One end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. The other end with right-angled Ø 4 mm MULTILAM plug with rigid insulating sleeve.
Technical specifications
| Anschluss (1) | 4 mm Lamellenstecker, gerade | |
| Anschluss (2) | 4 mm Lamellenstecker, abgewinkelt | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 19 A | |
| Berührungssicher | Yes | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT III, CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
