66.2016-10024 | Stäubli Electrical Connectors

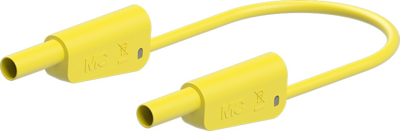

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, yellow, silicone, 2.5 mm², CAT II, CAT III, 66.2016-10024
Order No.: 86F2933
EAN: 4255674606911
MPN:
66.2016-10024
SLK-4N-S25 1,0M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
9.9127 € *
Available: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
9.91 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9127 €
10 pcs.
9.1154 €
50 pcs.
8.5799 €
100 pcs.
8.0444 €
500 pcs.
7.5089 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety measuring lead, 662016-10024, Stäubli Electrical Connectors
Highly flexible, with insulation silicone with stackable Ø 4 mm multilam plugs with rigid insulating sleeve on both ends.
Technical specifications
| Connection (1) | 4 mm Lamellenstecker, gerade | |
| Connection (2) | 4 mm Lamellenstecker, gerade | |
| Cable length | 1 m | |
| Cable cross-section | 2,5 mm² | |
| Colour | gelb | |
| Material | Silikon | |
| contact surface | vernickelt | |
| Rated category | CAT II, CAT III | |
| Rated Voltage | 1000 V/600 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Beutel mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
