66.8011-15022 | Stäubli Electrical Connectors

Safety measuring lead with (test probe, straight) to (4 mm lamella plug, straight), 1.5 m, red, TPE, 0.5 mm², CAT IV, 66.8011-15022

Order No.: 86F0946
EAN: 4099891973681
MPN:
66.8011-15022
SAPK-4N-T05-5KV 1,5 M ROT
Series: SAPK-4N-T05-5KV
Stäubli Electrical Connectors

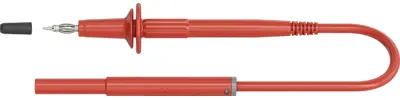

66.8011-15022 Stäubli Electrical Connectors Test Leads Image 1

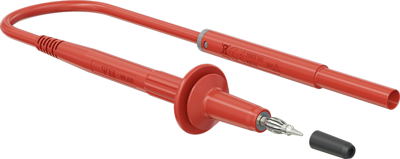

66.8011-15022 Stäubli Electrical Connectors Test Leads Image 2

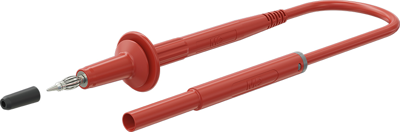

66.8011-15022 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Print
Key Specification:
Anschluss (1) Prüfspitze, gerade
Anschluss (2) 4 mm Lamellenstecker, gerade
Kabellänge 1.5 m
Leiterquerschnitt 0,5 mm²
Farbe rot
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
14.8274 € *
Available: 10 pcs.
Leadtime: 4 Weeks **
Total Price:
14.83 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8274 €
10 pcs.
13.9587 €
50 pcs.
13.0900 €
100 pcs.
12.2094 €
250 pcs.
11.3407 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Safety measuring cable, 66.8011-15022, Stäubli Electrical Connectors

Highly flexible. One end with Ø 4 mm test probe with springloaded MULTILAM, the other end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
Anschluss (1) Prüfspitze, gerade
Anschluss (2) 4 mm Lamellenstecker, gerade
Bemessungsspannung 1000 V
Bemessungsstrom 10 A
Farbe rot
Kabellänge 1.5 m
Kontaktoberfläche vernickelt
Leiterquerschnitt 0,5 mm²
Material TPE
Messkategorie CAT IV
Stapelbar No
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
