66.9006-10024 | Stäubli Electrical Connectors

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1 m, yellow, silicone, 1.0 mm², CAT III, 66.9006-10024

Order No.: 86F9111
EAN: 4099891084202
MPN:
66.9006-10024
XMS-484 1,00M GELB
Series: XMS-484
Stäubli Electrical Connectors

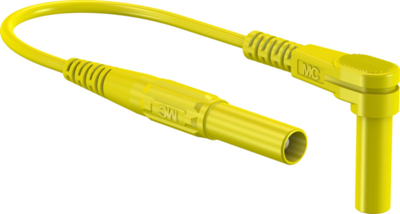

66.9006-10024 Stäubli Electrical Connectors Test Leads Image 1

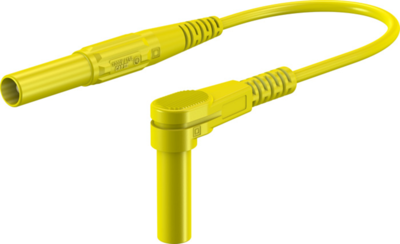

66.9006-10024 Stäubli Electrical Connectors Test Leads Image 2

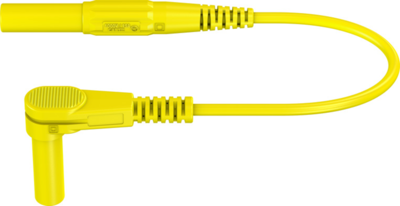

66.9006-10024 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Unit Price (€ / pc.)
7.3185 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
25 pcs.
6.7354 €
50 pcs.
6.3308 €
100 pcs.
5.9381 €
500 pcs.
5.5454 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, 66.9006-10024, Stäubli Electrical Connectors

Highly flexible, with insulation in silicone. One end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. The other end with right-angled Ø 4 mm MULTILAM plug with rigid insulating sleeve.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, angled
Rated Voltage 1000 V
Rated current 19 A
Touch safe Yes
Colour yellow
Cable length 1 m
contact surface nickel-plated
Cable cross-section 1.0 mm²
Material silicone
Rated category CAT III
Stackable No
Logistics
Customs tariff number 85444290
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
