66.9007-10021 | Stäubli Electrical Connectors
Measuring lead with (test probe, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, silicone, 1.0 mm², CAT II, 66.9007-10021
Order No.: 86F9133
EAN: 4099891084424
MPN:
66.9007-10021
XPS-484 1,00M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
8.6870 € *
Available: 15 pcs.
Leadtime: On Request **
Total Price:
8.69 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6870 €
25 pcs.
8.2229 €
50 pcs.
7.7231 €
100 pcs.
7.2471 €
500 pcs.
6.7592 €
*incl. VAT plus shipping costs
**Subject to prior sale

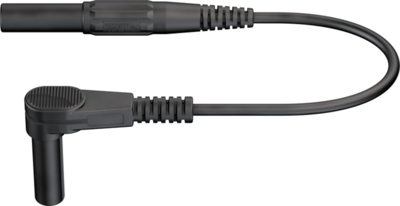

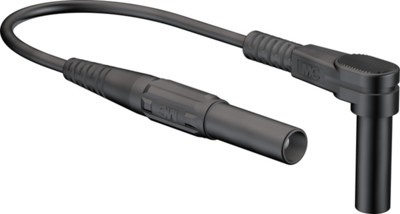

Test probe with measurement cable, 66.9007-10021, Stäubli Electrical Connectors
Highly flexible, with insulation in silicone. One end with Ø 4 mm test probe with spring-loaded MULTILAM, the other end with right angled Ø 4 mm MULTILAM plug with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
| Connection (1) | Prüfspitze, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, abgewinkelt | |
| Cable length | 1 m | |
| Cable cross-section | 1,0 mm² | |
| Colour | schwarz | |
| Material | Silikon | |
| contact surface | vernickelt | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 20 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
