66.9007-10022 | Stäubli Electrical Connectors
Measuring lead with (test probe, straight) to (4 mm plug, spring-loaded, angled), 1 m, red, silicone, 1.0 mm², CAT II, 66.9007-10022
Unit Price (€ / pc.)
8.5204 € *
Available: 15 pcs.
Leadtime: 2 Weeks **
Total Price:
8.52 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5204 €
25 pcs.
8.0563 €
50 pcs.
7.5684 €
100 pcs.
7.1043 €
500 pcs.
6.6283 €
*incl. VAT plus shipping costs
**Subject to prior sale

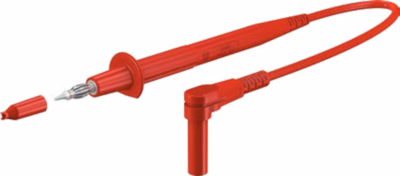

Test probe with measurement cable, 66.9007-10022, Stäubli Electrical Connectors
Highly flexible, with insulation in silicone. One end with Ø 4 mm test probe with spring-loaded MULTILAM, the other end with right angled Ø 4 mm MULTILAM plug with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
| Connection (1) | test probe, straight | |
| Connection (2) | 4 mm plug, spring-loaded, angled | |
| Rated Voltage | 1000 V | |
| Rated current | 20 A | |
| Touch safe | Yes | |
| Colour | red | |
| Cable length | 1 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | silicone | |
| Rated category | CAT II | |
| Stackable | No |
Download
Logistics
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
