66.9008-15021 | Stäubli Electrical Connectors

Measuring lead with (test probe, straight) to (4 mm plug, spring-loaded, angled), 1.5 m, black, PVC, 1.0 mm², CAT II, 66.9008-15021

Order No.: 86F9130
EAN: 4099891084394
MPN:
66.9008-15021
XPF-484 1,50M SCHWARZ
Series: XPF-484

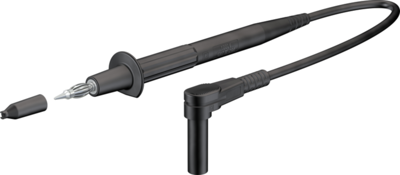

66.9008-15021 Stäubli Electrical Connectors Test Leads Image 1

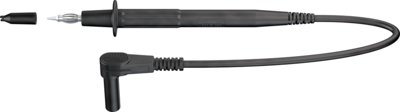

66.9008-15021 Stäubli Electrical Connectors Test Leads Image 2

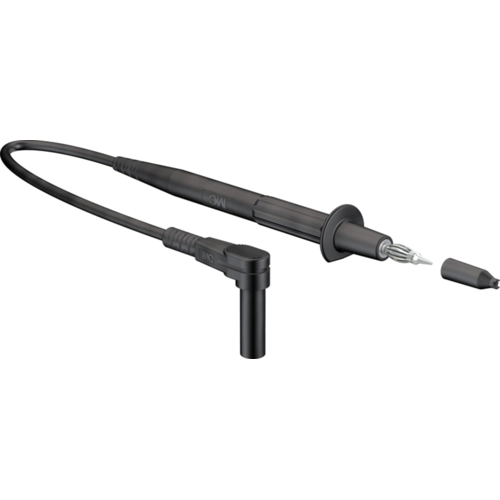

66.9008-15021 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Unit Price (€ / pc.)
8.3776 € *
Available: 18 pcs.
Leadtime: 8 Weeks **
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
25 pcs.
7.6993 €
50 pcs.
7.2471 €
100 pcs.
6.7949 €
500 pcs.
6.3308 €
*incl. VAT plus shipping costs
**Subject to prior sale

Test probe with measurement cable, 66.9008-15021, Stäubli Electrical Connectors

Highly flexible, with insulation in PVC. One end with Ø 4 mm test probe with spring-loaded MULTILAM, the other end with right angled Ø 4 mm MULTILAM plug with rigid insulating sleeve. Supplied with protective cap.

Technical specifications
Connection (1) Prüfspitze, gerade
Connection (2) 4 mm Stecker, gefedert, abgewinkelt
Cable length 1.5 m
Cable cross-section 1,0 mm²
Colour schwarz
Material PVC
contact surface vernickelt
Rated category CAT II
Rated Voltage 1000 V
Rated current 20 A
Touch safe Yes
Stackable No
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
