66.9011-15023 | Stäubli Electrical Connectors

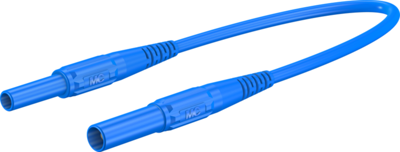

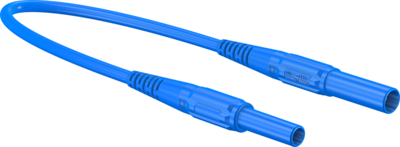

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1.5 m, blue, PVC, 1.0 mm², CAT III, 66.9011-15023
As an alternative, we recommend the following item:
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm socket, straight), 1.5 m, blue, PVC, 1.0 mm², CAT IV, 66.1044-15023
Order No.: 86F9916
Manufacturer: Stäubli Electrical Connectors
per pc. 4.7838 € *
*incl. VAT plus shipping costs
Extension lead, 66.9011-15023, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC. One end with Ø 4 mm MULTILAM plug with rigid insulating sleeve, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 19 A | |
| Berührungssicher | Yes | |
| Farbe | blau | |
| Kabellänge | 1.5 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Zolltarifnummer | 85444290 |
| Originalverpackung | Beutel mit 25 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
