66.9013-05021 | Stäubli Electrical Connectors

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 500 mm, black, PVC, 1.0 mm², CAT III, 66.9013-05021

Order No.: 86F9063
EAN: 4099891083724
MPN:
66.9013-05021
XMF-414 0,50M SCHWARZ
Series: XMF-414
Stäubli Electrical Connectors

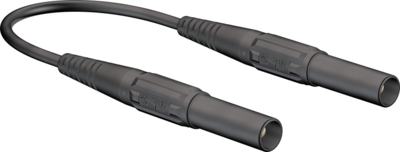

66.9013-05021 Stäubli Electrical Connectors Test Leads Image 1

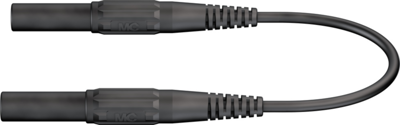

66.9013-05021 Stäubli Electrical Connectors Test Leads Image 2

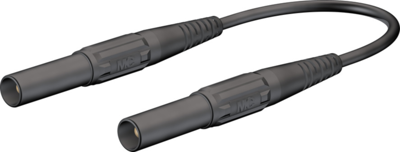

66.9013-05021 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Unit Price (€ / pc.)
4.3673 € *
Available: 40 pcs.
Leadtime: On Request **
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
25 pcs.
4.0103 €
50 pcs.
3.7842 €
100 pcs.
3.5462 €
500 pcs.
3.3082 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, 66.9013-05021, Stäubli Electrical Connectors

Highly flexible, with insulation in PVC with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 19 A
Touch safe Yes
Colour black
Cable length 500 mm
contact surface nickel-plated
Cable cross-section 1.0 mm²
Material PVC
Rated category CAT III
Stackable No
Logistics
Customs tariff number 85444290
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
