66.9014-05024 | Stäubli Electrical Connectors
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 0.5 m, yellow, silicone, 1.0 mm², CAT III, 66.9014-05024
As an alternative, we recommend the following item:
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 0.5 m, yellow, silicone, 1.0 mm², CAT IV, 66.1041-05024
Order No.: 86F9816
Manufacturer: Stäubli Electrical Connectors
per pc. 5.4026 € *
*incl. VAT plus shipping costs

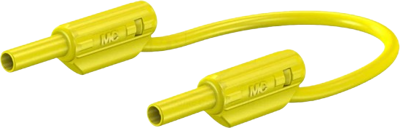

Test lead, 66.9014-05024, Stäubli Electrical Connectors
The 66.9014-05024 is a highly flexible, with in-line Ø 4 mm MULTILAM plug and with rigid insulating sleeve on both ends.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, gerade | |
| Cable length | 0.5 m | |
| Cable cross-section | 1,0 mm² | |
| Colour | gelb | |
| Material | Silikon | |
| contact surface | vernickelt | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 19 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
