66.9304-10021 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, black, silicone, 2.5 mm², CAT III, 66.9304-10021
As an alternative, we recommend the following item:
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, black, silicone, 2.5 mm², CAT IV, 66.1043-10021
Order No.: 86F9880
Manufacturer: Stäubli Electrical Connectors
per pc. 6.7473 € *
*incl. VAT plus shipping costs
Test lead, 66.9304-10021, Stäubli Electrical Connectors

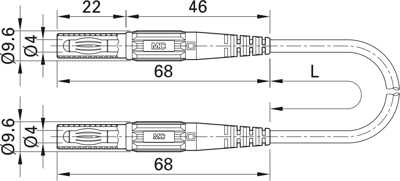

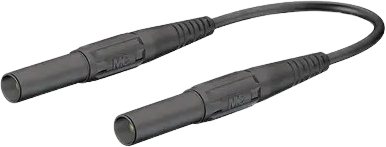

The 66.9304-10021 is a highly flwxible test lead with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeveon both ends.
Technical specifications
| Connection (1) | 4 mm Lamellenstecker, gerade | |
| Connection (2) | 4 mm Lamellenstecker, gerade | |
| Cable length | 1 m | |
| Cable cross-section | 2,5 mm² | |
| Colour | schwarz | |
| Material | Silikon | |
| contact surface | vernickelt | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
