66.9392-20028 | Stäubli Electrical Connectors

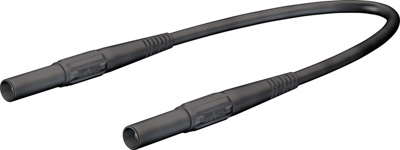

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, gray, silicone, 2.5 mm², CAT IV, 66.9392-20028

Order No.: 86F4019
EAN: 4099891071868
MPN:
66.9392-20028
XMS-419 GRAU 2,0M
Series: XMS-419
Stäubli Electrical Connectors
66.9392-20028 Stäubli Electrical Connectors Test Leads
Image may differ
Print
Key Specification:
Connection (1) 4 mm Stecker, gefedert, gerade
Connection (2) 4 mm Stecker, gefedert, gerade
Cable length 2 m
Cable cross-section 2,5 mm²
Colour grau
Download Datasheet Technical specifications
This item is no longer available.
As an alternative, we recommend the following item:
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, gray, silicone, 2.5 mm², CAT IV, 66.1043-20028
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, gray, silicone, 2.5 mm², CAT IV, 66.1043-20028
Order No.: 86F9901
Manufacturer: Stäubli Electrical Connectors
per pc. 7.6160 € *
*incl. VAT plus shipping costs
Description
Technical specifications
Download
Logistics
Compliance
Replacement

Measuring lead, 66.9392-20028, Stäubli Electrical Connectors

Highly flexible, with insulation in silicone with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
Technical specifications
Connection (1) 4 mm Stecker, gefedert, gerade
Connection (2) 4 mm Stecker, gefedert, gerade
Rated Voltage 1000 V
Rated current 32 A
Touch safe Yes
Colour grau
Cable length 2 m
contact surface vernickelt
Cable cross-section 2,5 mm²
Material Silikon
Rated category CAT IV
Stackable No
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85444290
Original Packaging Beutel mit 25 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
