66.9394-10026 | Stäubli Electrical Connectors
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, purple, PVC, 1.0 mm², CAT IV, 66.9394-10026
Unit Price (€ / pc.)
12.4236 € *
Available: 9 pcs.
Leadtime: 6 Weeks **
Total Price:
12.42 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4236 €
10 pcs.
11.7453 €
50 pcs.
11.0432 €
100 pcs.
10.3649 €
500 pcs.
9.6747 €
*incl. VAT plus shipping costs
**Subject to prior sale

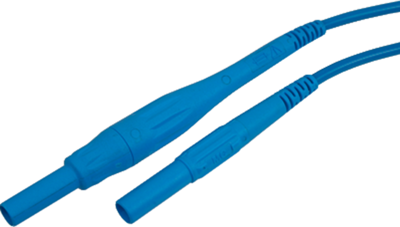

Fused test lead, 66.9394-10026, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC. With in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3x32 mm.The fuse is not supplied.
Technical specifications
| Anschluss (1) | 4 mm Stecker, gefedert, gerade | |
| Anschluss (2) | 4 mm Stecker, gefedert, gerade | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 8 A | |
| Berührungssicher | Yes | |
| Farbe | violett | |
| Kabellänge | 1 m | |
| Kontaktoberfläche | vernickelt | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Messkategorie | CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| Originalverpackung | Beutel mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
