66.9395-15021 | Stäubli Electrical Connectors

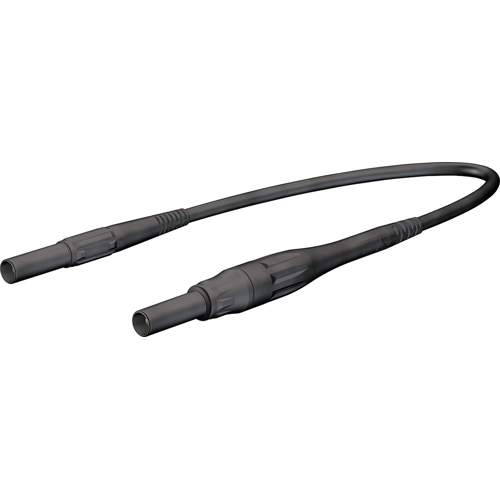

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1.5 m, black, silicone, 1.0 mm², CAT IV, 66.9395-15021
This item is no longer available.
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, black, silicone, 1.0 mm², CAT IV, 66.1047-15021
Order No.: 86F9976
Manufacturer: Stäubli Electrical Connectors
per pc. 14.0063 € *
Fused test lead, 66.9395-15021, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC. With in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3x32 mm.The fuse is not supplied.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, gerade | |
| Cable length | 1.5 m | |
| Cable cross-section | 1,0 mm² | |
| Colour | schwarz | |
| Material | Silikon | |
| contact surface | vernickelt | |
| Rated category | CAT IV | |
| Rated Voltage | 1000 V | |
| Rated current | 8 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Beutel mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
