66.9405-10021 | Stäubli Electrical Connectors

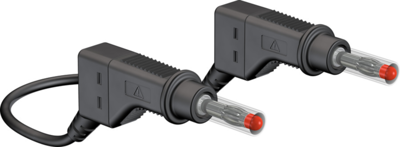

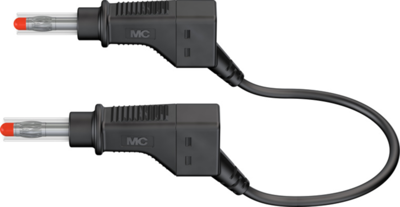

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, black, PVC, 1.0 mm², CAT II, 66.9405-10021
Order No.: 86F9174
EAN: 4099891084493
MPN:
66.9405-10021
XZG410 1,00M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
11.4002 € *
Available: 4 pcs.
Leadtime: 2 Weeks **
Total Price:
11.40 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4002 €
25 pcs.
10.5196 €
50 pcs.
9.6628 €
100 pcs.
9.0916 €
500 pcs.
8.5323 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead, 66.9405-10021, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC especially suitable for connecting electrical devices not (yet) equipped with safety sockets. With stackable Ø 4 mm MULTILAM plugs on both ends with protective collar and retractable sleeve to prevent accidental touching.
Technical specifications
| Connection (1) | 4 mm Stecker, gefedert, gerade | |
| Connection (2) | 4 mm Stecker, gefedert, gerade | |
| Cable length | 1 m | |
| Cable cross-section | 1,0 mm² | |
| Colour | schwarz | |
| Material | PVC | |
| contact surface | vernickelt | |
| Rated category | CAT II | |
| Rated Voltage | 600 V | |
| Rated current | 19 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
