66.9407-15028 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, gray, PVC, 2.5 mm², CAT II, 66.9407-15028
Order No.: 86F9411
EAN: 4099891761820
MPN:
66.9407-15028
XZG425 1,50M GRAU
Series: Test & Measurement
Unit Price (€ / pc.)
12.7925 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.79 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7925 €
25 pcs.
11.8643 €
50 pcs.
10.8885 €
100 pcs.
10.2340 €
500 pcs.
9.6033 €
*incl. VAT plus shipping costs
**Subject to prior sale

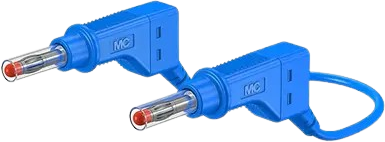

Test lead, 66.9407-15028, Stäubli Electrical Connectors
The 66.9407-15028 is a highly flexible test lead suitable for connecting electrical devices not (yet) equipped with safety sockets. With stackable Ø 4 mm MULTILAM plugs on both ends with protec-tive collar and retractable sleeve to prevent accidental touching.
Technical specifications
| Connection (1) | 4 mm Lamellenstecker, gerade | |
| Connection (2) | 4 mm Lamellenstecker, gerade | |
| Cable length | 1.5 m | |
| Cable cross-section | 2,5 mm² | |
| Colour | grau | |
| Material | PVC | |
| contact surface | vernickelt | |
| Rated category | CAT II | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
