66.9408-05026 | Stäubli Electrical Connectors
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 500 mm, purple, silicone, 2.5 mm², CAT II, 66.9408-05026
Order No.: 86F9210
EAN: 4099891084844
MPN:
66.9408-05026
XZG425/SIL 0,50M VIOLETT
Series: XZG425/SIL
Unit Price (€ / pc.)
11.4240 € *
Available: 5 pcs.
Leadtime: 6 Weeks **
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4240 €
25 pcs.
10.5672 €
50 pcs.
9.7104 €
100 pcs.
9.1392 €
500 pcs.
8.5680 €
*incl. VAT plus shipping costs
**Subject to prior sale

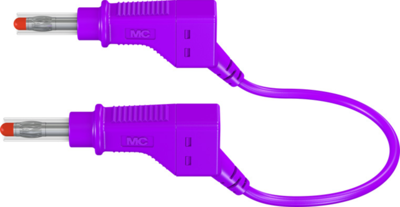

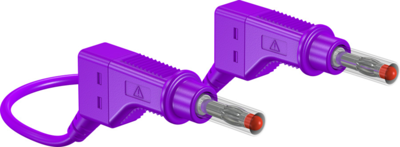

Measuring lead, 66.9408-05026, Stäubli Electrical Connectors
Highly flexible, with insulation insilicone especially suitable for connecting electrical devices not (yet) equipped with safety sockets. With stackable Ø 4 mm MULTILAM plugs on both ends with protective collar and retractable sleeve to prevent accidental touching.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Colour | purple | |
| Cable length | 500 mm | |
| contact surface | nickel-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | silicone | |
| Rated category | CAT II | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
