66.9645-10021 | Stäubli Electrical Connectors

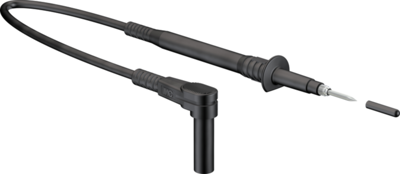

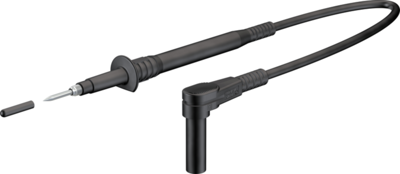

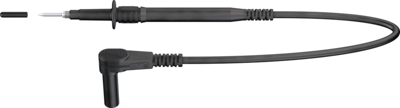

Measuring lead with (test probe, straight) to (4 mm plug, spring-loaded, angled), 1 m, black, PVC, 0.75 mm², CAT II, 66.9645-10021
Order No.: 86F9123
EAN: 4099891084325
MPN:
66.9645-10021
XPF-480/2G 1,00M SCHWARZ
Series: XPF-480/2G
No longer available from manufacturer, LTB: 12.31.2021
Unit Price (€ / pc.)
4.2126 € *
Available: 3 pcs.
Measuring lead, 66.9645-10021, Stäubli Electrical Connectors
Highly flexible test lead One end with Ø 2 mm test probe made of stainless steel with a thread for use with screw-on accessories, offering various contacting possibilities The other end with in-line or right angled Ø 4 mm MULTILAM plug with rigid insulating sleeve.
Technical specifications
| Connection (1) | test probe, straight | |
| Connection (2) | 4 mm plug, spring-loaded, angled | |
| Rated Voltage | 1000 V | |
| Rated current | 15 A | |
| Touch safe | Yes | |
| Colour | black | |
| Cable length | 1 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 0.75 mm² | |
| Material | PVC | |
| Rated category | CAT II | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
