67.9800-160 | Stäubli Electrical Connectors
Coaxial cable with (BNC plug) to (2 x 4 mm plug, straight), 1.6 m, black/red, PVC, CAT II, 67.9800-160
This item is no longer available.
As an alternative, we recommend the following item:
Measuring lead with (BNC plug, straight) to (4 mm lamella plug, straight), 1.6 m, black, PVC, CAT II, CAT III, 66.1030-160
Order No.: 86F9366
Manufacturer: Stäubli Electrical Connectors
per pc. 27.6556 € *

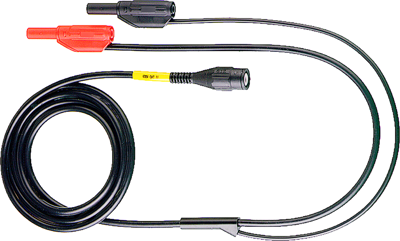

Adapter lead, 67.9800-160, Stäubli Electrical Connectors
Highly flexible, fully shielded adapter leads. One end with coaxial cable with touch-protected BNC male connector, other end with in-line Ø 4 mm MULTILAM plugs with rigid insulating sleeve.
Technical specifications
| Connection (1) | BNC-Stecker | |
| Connection (2) | 2 x 4 mm Stecker, gerade | |
| Rated Voltage | 600 V | |
| Touch safe | Yes | |
| Colour | schwarz/rot | |
| Cable length | 1.6 m | |
| Material | PVC | |
| Rated category | CAT II | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
