MK06-5-B | Standex Electronics

Proximity switch, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 15 mm, MK06-5-B

Order No.: 30G252
EAN: 4099889448719
MPN:
MK06-5-B
2206050001
Series: MK06
Standex Electronics

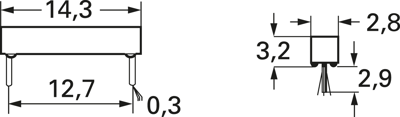

MK06-5-B Standex Electronics Proximity Switches, Reed switches Image 1

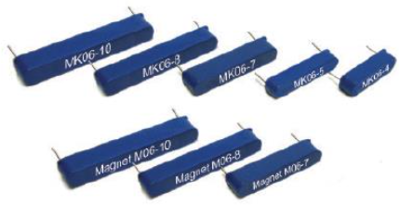

MK06-5-B Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
500 pcs.
1.3328 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
**Subject to prior sale

Reed sensor, MK06-5-B, Standex Electronics

The MK06-5-B is a miniature through-hole mount reed sensor used in On/Off control switch, proximity, motion, position detection. 1 inch (2.54mm) pin spacing available. UL Approval.

Applications

  • Appliance
  • Telecommunication
  • Security
  • Medical
  • Industry
Technical specifications
Connection solder pin
Version reed sensor
Detection range 15 mm
Length 14.3 mm
Assembly PCB mounting
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (DC) 200 V
switching current 0.5 A
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
