MK06-8-H | Standex Electronics

Reed switche, PBT, PCB mounting, 1 Form C (NO/NC), 10 W, 175 V (DC), 0.5 A, MK06-8-H

Order No.: 30G256
EAN: 4099889448733
MPN:
MK06-8-H
2206080007
Series: MK06

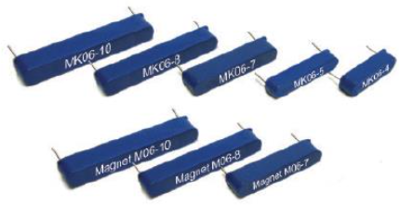

MK06-8-H Standex Electronics Proximity Switches, Reed switches Image 1

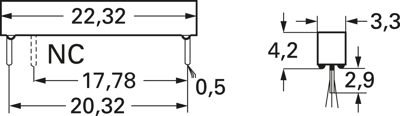

MK06-8-H Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
3.6652 € *
Available: 252 pcs.
Leadtime: 4 Weeks **
Total Price:
3.67 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6652 €
10 pcs.
3.6295 €
50 pcs.
3.5938 €
100 pcs.
3.5462 €
*incl. VAT plus shipping costs
**Subject to prior sale

Reed sensor, MK06-8-H, Standex Electronics

The MK06-8-H is a miniature through-hole mount reed sensor used in On/Off control switch, proximity, motion, position detection. 1 inch (2.54mm) pin spacing available. UL Approval.

Applications

  • Appliance
  • Telecommunication
  • Security
  • Medical
  • Industry
Technical specifications
Connection Lötstift
Version PBT
Detecting distance 20 mm
Length 22.33 mm
Assembly Leiterplattenmontage
Product type Reedsensor
Latching switching function 1 Wechsler
Breaking capacity 10 W
Switching Voltage (DC) 175 V
switching current 0.5 A
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
