MK22-B-2 | Standex Electronics

Reed sensor, SMD, 1 Form A (N/O), 20 W, 200 V (DC), 1 A, MK22-B-2

Order No.: 30G200
EAN: 4099889448184
MPN:
MK22-B-2
Series: MK22
Standex Electronics

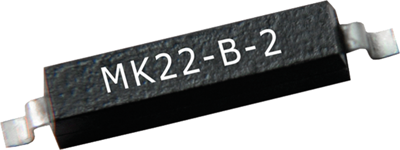

MK22-B-2 Standex Electronics Proximity Switches, Reed switches Image 1
MK22-B-2 Standex Electronics Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
1.3804 €

Reed sensor, MK22-B-2, Standex Electronics

The MK22-B-2 is a miniature surface mount reed sensor used in On/Off control switch, proximity, motion, position detection. Supplied in tape and reel according to IEC 286/part 3. Axial or gull-wing lead designs available. UL Approval.

Features

  • Supplied in tape and reel
  • Excellent for low power operations

Applications

  • Switching element in microphones
  • Appliance
  • Telecommunication
  • Security
Technical specifications
Connection SMD
Version reed sensor

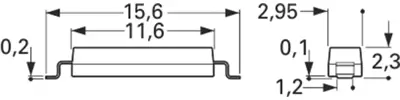

Length 15.6 mm
Assembly SMD
Latching switching function 1 Form A (N/O)
Breaking capacity 20 W
Switching Voltage (AC) 200 V
Switching Voltage (DC) 200 V
switching current 1 A
Contact resistance 150 mΩ
Logistics
Country of origin CN
Customs tariff number 85365080
Original Packaging Reel with 2,500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
