H24-1A83 | Standex Electronics
Reed relay, 24 V (DC), 1 Form A (N/O), 50 W, H24-1A83
Unit Price (€ / pc.)
51.6460 € *
Available: 15 pcs.
Next delivery: 12 pcs. on 2025-04-08
Leadtime: 14 Weeks **
Total Price:
51.65 € *
Price list
Quantity
Price per unit*
1 pcs.
51.6460 €
5 pcs.
48.5401 €
15 pcs.
46.6837 €
50 pcs.
44.6250 €
150 pcs.
42.7686 €
*incl. VAT plus shipping costs
**Subject to prior sale

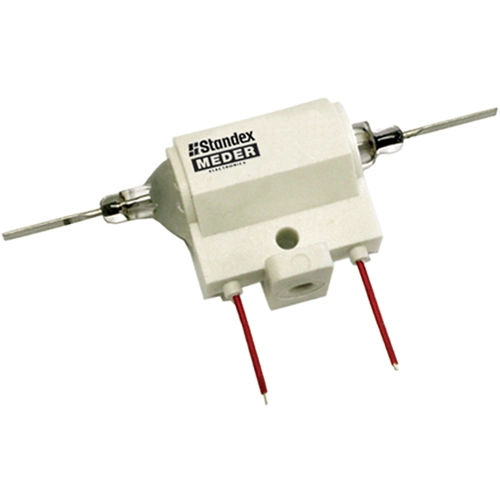

High-voltage reed relays, type Standex-Meder H.

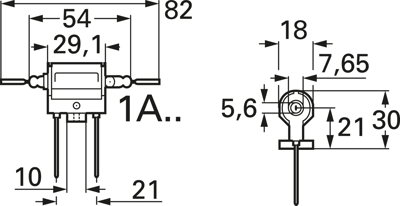

With horizontal wires. Strap and mounting hole for M 4 screw; Contact type: 1 NO or 1 NC. Breaking capacity: max. 50 W. Switching voltage: max. 7.5 or 10 kV. Switching current: max. 3.0 A. On-state current: max. 5.0 A. Contact resistance (static): max. 150 mohm. Dielectric strength of contact coil: min. 15 kVDC. Response time (including bounce): max. 3.0 ms. Release time: max. 1.5 ms. Operating temperatures: –20 to +70 °C.
1 x NO contact, 7.5 kV switching voltage.
Technical attributes (type, coil voltage, typical coil resistance, max. pick-up voltage/min. release voltage, typical rated power): H24-1A83, 24 VDC, 700 ohm, 16.8/3.6 VDC 822 mW
Technical specifications
| Anschluss | Litzen | |
| Kontaktart | 1 Schließer | |
| Schaltleistung | 50 W | |
| Schaltspannung (AC) | 7.5 kV | |
| Schaltspannung (DC) | 7.5 kV | |
| Schaltstrom | 3 A | |
| Spulenspannung (DC) | 24 V | |
| Spulenwiderstand | 700 Ω |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85364110 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
