H24-1B83 | Standex Electronics

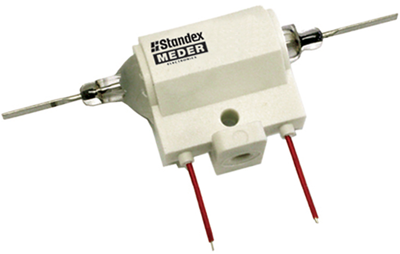

Reed relay, 24 V (DC), 1 Form B (N/C), 50 W, H24-1B83
Unit Price (€ / pc.)
56.2513 € *
Available: 0 pcs.
Leadtime: On Request **

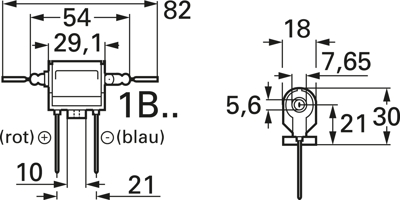

High-voltage reed relays, type Standex-Meder H.
With horizontal wires. Strap and mounting hole for M 4 screw; Contact type: 1 NO or 1 NC. Breaking capacity: max. 50 W. Switching voltage: max. 7.5 or 10 kV. Switching current: max. 3.0 A. On-state current: max. 5.0 A. Contact resistance (static): max. 150 mohm. Dielectric strength of contact coil: min. 15 kVDC. Response time (including bounce): max. 3.0 ms. Release time: max. 1.5 ms. Operating temperatures: –20 to +70 °C.
1 x NC contact, 7.5 kV switching voltage.
Technical attributes (type, coil voltage, typical coil resistance, max. pick-up voltage/min. release voltage, typical rated power): H24-1B83, 24 VDC, 650 ohm, 16.8/3.6 VDC 886 mW
Technical specifications
| Connection | stranded wires | |
| Contact type | 1 Form B (N/C) | |
| Breaking capacity | 50 W | |
| Switching Voltage (AC) | 7.5 kV | |
| Switching Voltage (DC) | 7.5 kV | |
| switching current | 3 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 650 Ω |
