LI24-1A85 | Standex Electronics

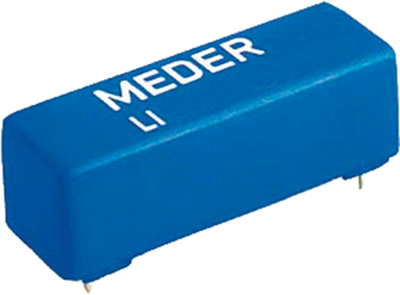

High-voltage reed relay, 24 V (DC), 1 Form A (N/O), DIP, 100 W, LI24-1A85
Unit Price (€ / pc.)
10.9361 € *
Available: 35 pcs.
Leadtime: 5 Weeks **
Total Price:
10.94 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9361 €
16 pcs.
9.6271 €
64 pcs.
9.1035 €
160 pcs.
8.7703 €
*incl. VAT plus shipping costs
**Subject to prior sale
High-voltage reed relays, type Standex Meder LI05.
Contact: NO. Breaking capacity: 100 W. Switching voltage: 1.0 kV. Switching current: 1.0 A. On-state current: 2.5 A. Contact resistance: 150 mohm. Breakdown voltage contact-coil: 7.0 kVDC. Switching time: 1.1 ms. Release time: 0.1 ms. Operating temperatures: –20 to +70 °C.
Technical attributes (type, rated coil voltage, rated coil power, coil resistance): LI24-1A85, 24 VDC, 288 mW, 2000 ohm
Technical specifications
| Connection | Leiterplattenanschluss | |

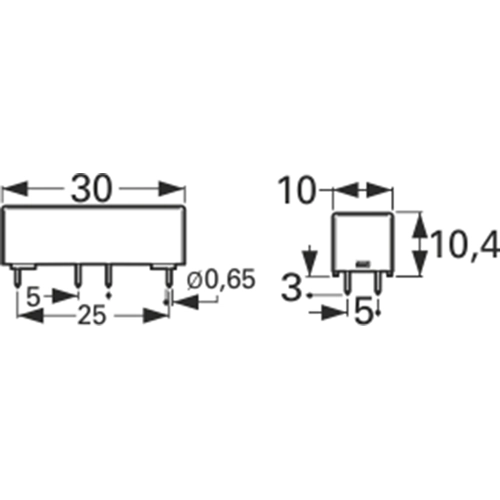

| Design | DIP | |
| Contact type | 1 Schließer | |
| Breaking capacity | 100 W | |
| Switching Voltage (AC) | 1 kV | |
| Switching Voltage (DC) | 1 kV | |
| switching current | 1 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 2 kΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364110 |
| Original Packaging | Stange mit 16 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
