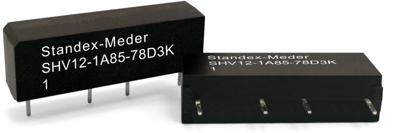

SHV12-1A85-78D3K | Standex Electronics
Reed relay, 12 V (DC), 1 Form A (N/O), SIP, 100 W, SHV12-1A85-78D3K
Unit Price (€ / pc.)
10.7933 € *
Available: 0 pcs.
Leadtime: On Request **
Reed Relay, SHV12-1A85-78D3K, Meder
Coil voltage: 12VDC, contact type: 1 NO (SPST-NO), rated power: 100 W, switching current: 1A, breakdown voltage: 3kv
Technical specifications
| Connection | PCB connection | |
| Design | SIP | |
| Contact type | 1 Form A (N/O) | |
| Contact material | FeNi | |
| Breaking capacity | 100 W | |
| Switching Voltage (AC) | 1 kV | |
| Switching Voltage (DC) | 1 kV | |
| switching current | 1 A | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 500 Ω |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
